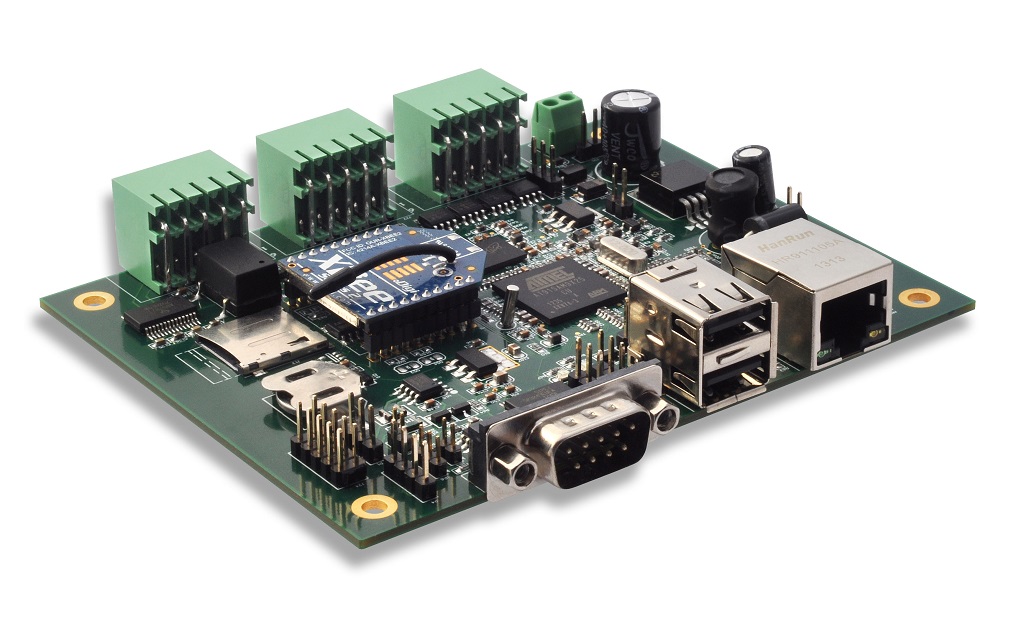

GESBC-9x25 Industrial Computer

Industrial grade, low cost embedded single board computer with LAN, RS-232, RS-485, CAN, USB, A/D, WIFI, ZigBee, GSM/GPRS/LTE

Designed for industrial applications and long-term availability, the GESBC-9X25 features a power efficient ARM® processor with options for expansion and customization. The combination of processing power and industrial I/O provides a flexible solution for a number of applications including security, industrial control, medical, transportation and MIL/COTS. This low-power design operates from -40° to +85°C without a fan or heatsink for improved reliability.

Features

  • 400MHz Atmel AT91SAM9x25 ARM core processor with DSP Instruction Extensions and ARM Jazelle® Technology for Java® Acceleration
  • 128MB high speed DDRRAM
  • 128MB NAND FLASH
  • 10/100 baseT Ethernet
  • microSD
  • 2 USB Host port
  • 2 RS-232
  • 1 RS-485
  • CAN bus
  • Real-time clock and watch-dog timer
  • A/D
  • Digital I/O
  • ob-board socket for ZigBee, GSM modem, embedded WIFI
  • optional WiFi
  • -30°C ~ +70° C fanless operation

Hardware Specification

System

  • 400MHz Atmel AT91SAM9x25 ARM core processor
  • 128MB high speed DDRRAM
  • 128MB NAND FLASH, optional 512MB, 1GB NAND FLASH
  • DSP Instruction Extensions
  • ARM Jazelle® Technology for Java® Acceleration

Interfaces

  • 2 USB host ports
  • 2 RS-232 ports running up to 921.6kbps
  • 1 RS-485 port running up to 921.6kbps
  • 1 CAN bus
  • 8 LVTTL GPIO with multiplexed SPI bus

Isolated Digital Input

  • 8 isolated digital input channels with up to 20V protection and 2500Vrms isolation

High-drive Digital Output

  • 8 high current digital output channels with up to 1A current drive

Network

  • 10/100 Mbps Ethernet

Timer & Clock

  • On chip real time clock with battery backup
  • On chip watch-dog timer

Analog I/O

  • 8 channels single ended / 4 channels differential 14 bit high resolution A/D converter with programmable gain

Power Requirement

  • 7.5V ~ 24V DC or 5V DC

Mechanical

  • 4.5"L x 3.5"W

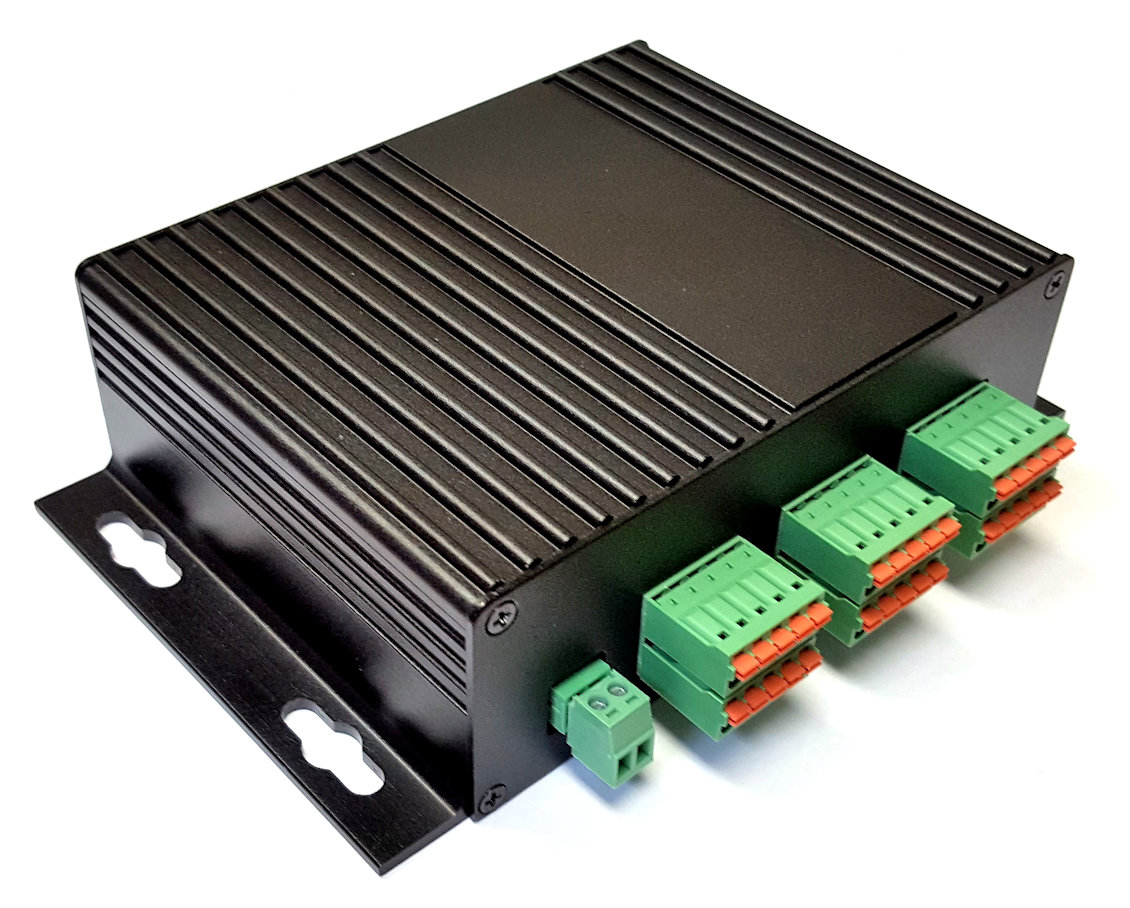

  • Optional aluminum enclosure
  • Operating temperature: Fanless -30°C ~ +75° C

Software Specification

The GESBC-9x25 factory pre-installed software includes many common used packages and utilities. User can easily add other utilities/packages using OPKG tool.

Boot loader

  • U-boot 2013-10

Linux Kernel

  • Linux 2.6.39

Supported File Systems

  • UBI, JFFS2, ETX2/ETX3, VFAT/FAT, NFS, NTFS

Pre-installed Utilities

  • bash, busybox, psplash, sysvinit, wget, ipkg, procps (for webmin), psmics, lighttpd, vsftpd, iptable, ppp, openssh, wireless_tools, usbutils, phyton, snm

Protocol stacks

  • IPv4, ICMP, ARP, DHCP, NTP, TCP, UDP, FTP, Telnet, HTTP, PPP, PPPoE, CHAP, PAP, SMTP, SNMP V1/V2, SSL, SSH 1.0/2.0

Daemon

  • pppd: Dial In/out over serial port and PPPoE
  • snmpd: SNMP agent program
  • telnetd: Telnet server program
  • inetd: TCP server program
  • ftpd: FTP server program
  • boa: Web server program
  • sshd: secured shell server
  • iptables: Firewall service manager
