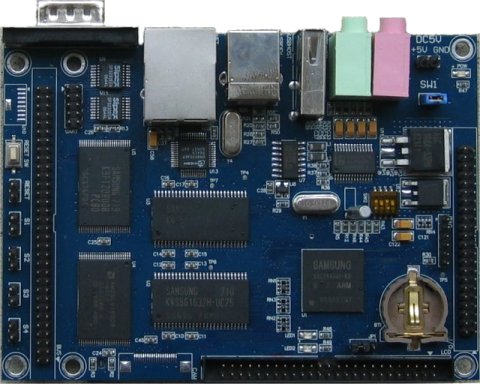

GESBC-2440
Single Board Computer
|
| |
High performance,
low cost embedded single board computer
with LAN, USB, LCD driver
|
| |
Features
|
| |
- 400MHz Samsung
S3C2440A ARM core processor
- 64 - 128 MB 100MHz high speed SDRAM ,
2 - 16 MB NOR FLASH, 64MB NAND FLASH
- 10/100 baseT Ethernet
- 2 USB
- 3 UART
- Real-time clock and
watch-dog timer
- LCD controller support
TFT/STN
- Integrated touch
screen support
- Integrated camera
interface
- Digital I/O
- MMC/SDIO/SD
- IIS Audio
|
| |
Specification
|
|
System
|
| |
- 400MHz Samsung
S3C2440A ARM core processor
- 64 MB 100MHz high speed SDRAM,
optional 128MB SDRAM
- 2MB NOR FLASH,
optional 16MB NOR FLASH
- 64MB NAND FLASH
|
|
Multi-IO
|
| |
- 1 USB host port
- 1 USB device port
- 3 UART
|
|
Network
|
|
|
|
|
Display
|
| |
- Integrated LCD controller supports
TFT/STN with resolution up to 1280x1024
- Integrated touch screen controller
|
|
Camera interface
|
| |
- Integrated camera interface with
ITU-R BT.601/656 8-bit mode external interface support
|
|
|
Timer & Clock |
| |
- On-chip real time clock with battery back up
- On-chip watch-dog timer
- 5 On-chip 16 bit timer with 8 bit pre-scaler
|
|
Analog I/O
|
| |
- Integrated 4 channel 10 bit A/D
converter on I/O expansion bus
|
|
Digital I/O
|
| |
- Integrated 25 digital I/O
individual configurable on I/O expansion bus
|
|
Audio
|
| |
- IIS high quality audio with
line-out, mic-in
|
|
Power Requirement
|
| |
|
|
Mechanical
|
| |
- 4.3"L x 3.2"W small foot print
- Operating temperature:
Fanless 0°C to 70°
C
|
|
Software support
|
| |
- uBoot
boot-loader
- Linux 2.6.18
- Linux cross
development tool chain
- WinCE.net BSP
|
