  Introducing GESBC-9260

Quantity price from

$69

Powered by Atmel 200MHz 32bit advanced ARM processor with ARM926EJ-S core, its low power, simple, elegant and fully static design is particularly suitable for cost- and power-sensitive applications. The GESBC-9260 rich set of features includes

  • Atmel AT91SAM9260B 200 MHz ARM processor (ARM926EJ-S core with MMU, 8KByte I-cache and 8KByte D-cache, DSP Instruction Extensions, ARM Jazelle?Technology for Java?Acceleration)
  • 64Mbyte SDRAM (optional 128MB)
  • 128Mbyte NAND Flash (optional 256MB ~ 1GB)
  • 3 RS-232 Serial ports
  • 1 RS-485 port
  • 1 10/100M Ethernet port
  • 2 USB Host port
  • 1 USB Device Port
  • SD/MMC card socket
  • Image sensor interface
  • Memory Expansion Bus
  • Battery backed RTC
  • Watchdog
  • GPIO
  • SPI
  • I2C
  • Very low power consumption single 5VDC operation
  • Linux 2.6.25
  • Support WinCE

The GESBC-9260 is ideal for highly connected image processing applications, such as point-of-sale terminals, Ethernet-based IP cameras, and bar code readers.

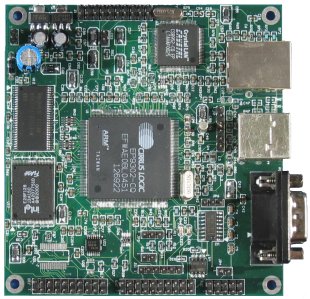

Low cost GESBC-9302E     From $65
  • 200MHz 32 bit EP9302 ARM core processor
  • 32M SDRAM
  • 4-16M  NOR FLASH, 128MB - 2G NAND FLASH
  • 10/100 baseTx Ethernet
  • 2 USB port
  • 2 UART with optional RS-485

  • Real time clock

  • Watch-dog timer

  • A/D

  • D/A

  • Digital I/O

  • SPI

  • Supports Linux, WinCE, eCos

GESBC-9315

  • 200MHz 32bit ARM processor with on chip math co-processor and graphic accelerator

  • 64M SDRAM, 8-32M FLASH
  • TFT/STN LCD controller, VGA and S-video output
  • integrated touch screen support
  • 10/100 baseTx Ethernet port
  • 3 USB
  • 3 UART with RS-485
  • Integrated IDE controller
  • Real time clock
  • Watch-dog timer
  • A/D converter
  • D/A conveter
  • Digital I/O
  • CAN controller


From $150

  • PC/104
  • PCMCIA
  • SPI
  • AC '97 high quality sound
  • Supports Linux, WinCE, eCos



At GLOMATION, our goal is to continually improve on our ability to understand and consistently exceed our customer’s expectations for performance, quality, cost effective products, and on-time delivery.
